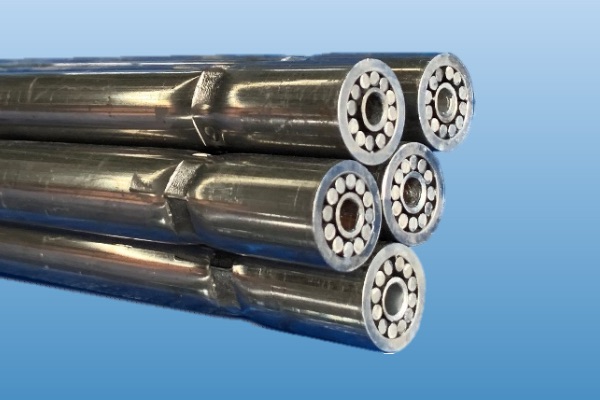

Shinto Power Lance is a self- combustion pipe composed of steel pipes and steel wires.
The combustion temperature reaches 3,000℃ to 4,000℃ by blowing oxygen gas through Shinto Power Lance, which makes it possible to cut iron, non-ferrous metals, concrete, refractory materials, and other substances easily.

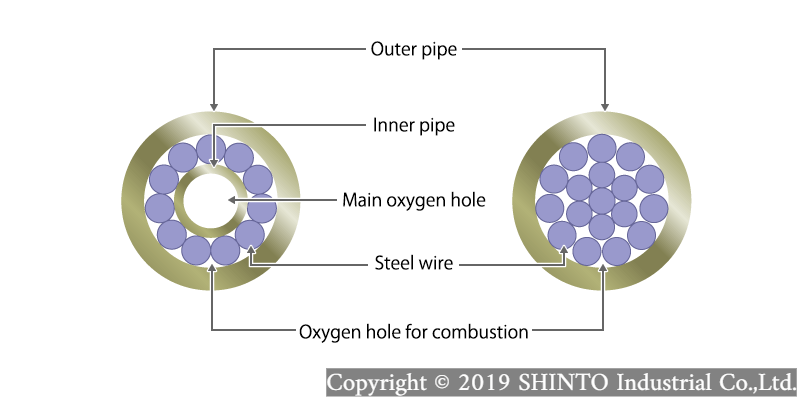

| Type | Cross section | Outer pipe （mm） | Legth（mm） | Net weight（kg/pc） | Oxygen working pressure（MPa） |
Connection type |
|---|---|---|---|---|---|---|
| PL8-3 |  |
13.8 | 2,750 | 2.75 | 0.6～0.8 | UT/C |
| PL10-1 |  |
17.3 | 2,750 - 3,000 | 4.45 - 4.08 | 0.7～1.0 | T/C, UT/C |
| PL10-3 |  |
17.3 | 3,000 | 4.84 | 0.8～1.2 | T/C, UT/C |
| PL15-1 |  |
21.7 | 2,750 | 6.00 | 1.0～1.3 | T/C, UT/C |
Other sizes are also available. Don’t hesitate to contact us, if you have any questions.

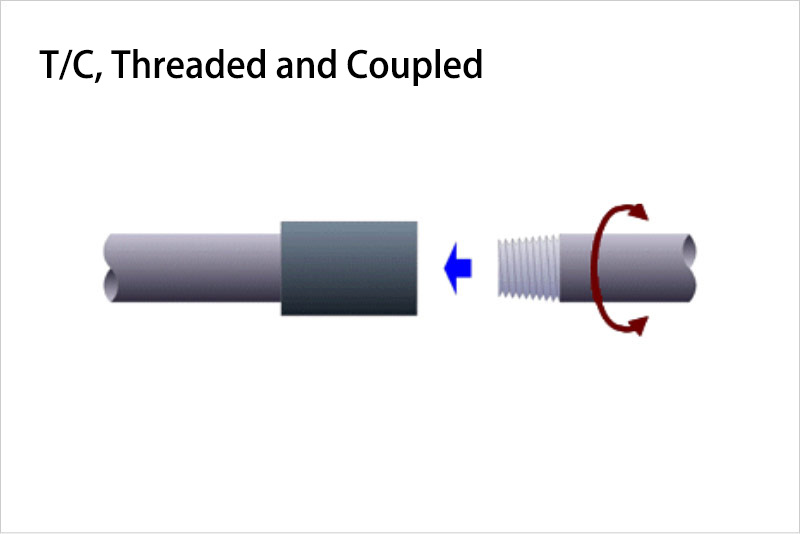

Conventional screw connection

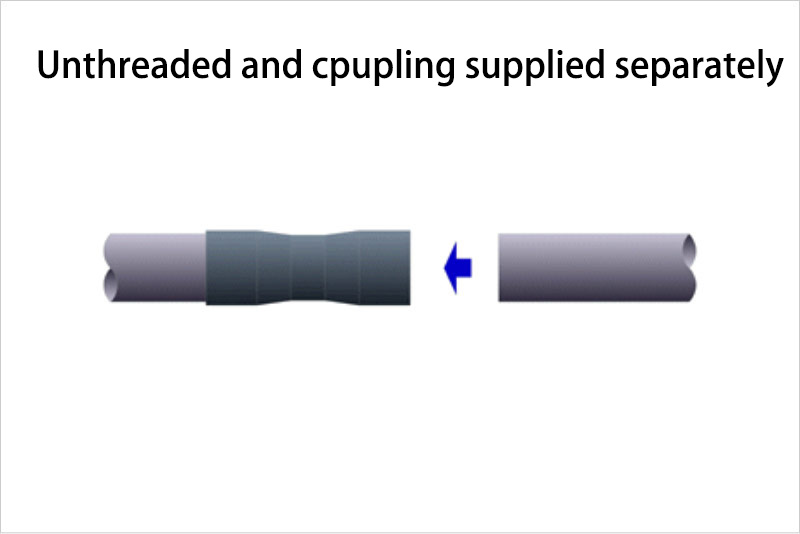

Connection by easy one-touch coupling
Holder/Valve combination
